Linear accelerator cutaway.

Siemens ONCOR image-guided radiation therapy (IGRT) medical device.

Siemens ONCOR linear accelerator cutaway

Siemens PRIMUS linear accelerator

Used in Image-Guided Radiation Therapy (IGRT)

Siemens PRIMUS linear accelerator

Image Data

  • Client: Siemens Medical Solutions
  • Agency: N/A
  • Format: Digital (Photoshop)
  • Use: Brochure, Collateral
  • Resolution: 32" @ 300dpi
  • View: PRIMUS Linear Accelerator

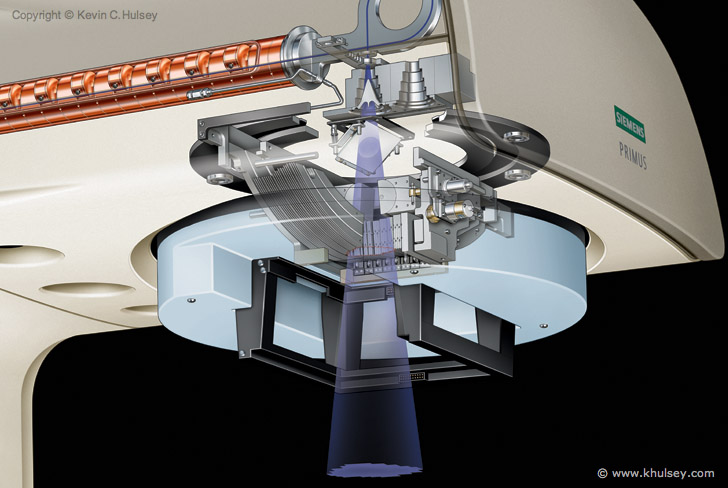

Close-Up of linear accelerator collimator

Showing electron particle beam focusing on specific area of tumor

Multi-vane collimator

Image Data

Multi-Vane Collimator

Line-art of leaf vanes in collimator which focus the electron beam to an exacting area

Multi-vane leaf collimator

Image Data

The ONCOR Avant-Garde linear accelerator is a high-tech medical device used in the latest oncology clinical treatment applications such as Image-Guided Radiation Therapy (IGRT). A medical linear particle accelerator produces a powerful electron beam of x-ray radiation which is spread out and/or confined by scanning magnets and movable tungsten alloy leaf vanes, or a multi-vane 'collimator,' to produce a safe level of radiation in the exact location needed for treatment. The beam is focused with MVision which uses cone-beam CT images. The ONCOR Expression is used in Stereotactic Radiation Therapy and Surgery (SRT/SRS), Intensity-Modulated Radiation Therapy (IMRT), and 3D IGRT. Expression uses MVision Megavoltage Cone Beam Imaging to provide a 3D Image-Guided Radiation Therapy (IGRT) solution.

The PRIMUS Linear Accelerator focuses the maximum amount of radiation to a tumor with a minimum dose of radiation to surrounding tissue, using IMRT technology and the Optifocus graphical user interface. Siemens Medical Solutions USA, Inc. is located in Concord, California.
